golang开发安装go-torch火焰图操作步骤

来源:脚本之家

时间:2022-12-29 13:26:55 282浏览 收藏

来到golang学习网的大家,相信都是编程学习爱好者,希望在这里学习Golang相关编程知识。下面本篇文章就来带大家聊聊《golang开发安装go-torch火焰图操作步骤》,介绍一下go-torch、火焰图,希望对大家的知识积累有所帮助,助力实战开发!

安装

    1、 安装go-torch

            go get github.com/uber/go-torch

    2、安装FlameGraph

            cd $GOPATH && git clone  https://github.com/brendangregg/FlameGraph.git

      export PATH=$PATH:$GOPATH/FlameGraph

【这步一定要设置,生成火焰图时会用到】

    3、安装graphviz (CentOS, Redhat)

      yum install graphviz

在程序的包含mian函数的文件中添加相应代码

使用

package main
import (
"net/http"
"net/http/pprof"
)
func main() {
// 主函数中添加
go func(){
http.HandleFunc("/debug/pprof/block", pprof.Index)
http.HandleFunc("/debug/pprof/goroutine", pprof.Index)
http.HandleFunc("/debug/pprof/heap", pprof.Index)
http.ListenAndServe("0.0.0.0:8888", nil) //注意此处,遇到错误
}()
//你的代码
}

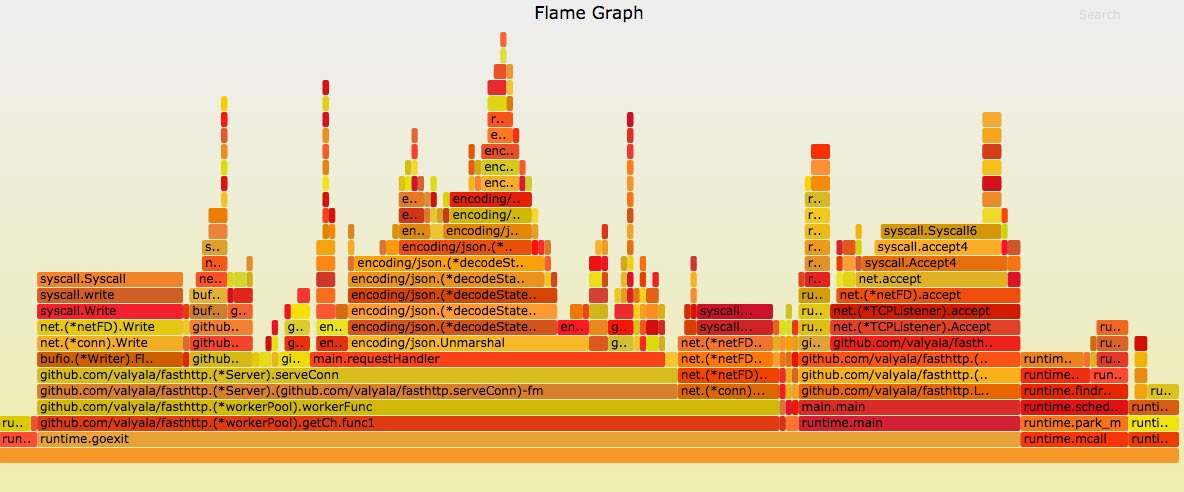

然后压测的时候,在go 的bin目录下找到go-torch,去运行,会把缓存的数据输出到文件中

./go-torch -u http://localhost:8080/debug/pprof/ -p > profile-local.svg
./go-torch -u http://localhost:8080/debug/pprof/heap -p > heap-local.svg

另一种自定义显示方式

代码修改

import "net/http"
import _ "net/http/pprof"
func main() {
    // 主函数中添加
    go func() {
		http.HandleFunc("/program/html", htmlHandler) // 用来查看自定义的内容
		log.Println(http.ListenAndServe("0.0.0.0:8080", nil))
	}()
}

使用

# 用 -u 分析CPU使用情况
./go-torch -u http://127.0.0.1:8080
# 用 -alloc_space 来分析内存的临时分配情况
./go-torch -alloc_space http://127.0.0.1:8080/debug/pprof/heap --colors=mem
# 用 -inuse_space 来分析程序常驻内存的占用情况;
./go-torch -inuse_space http://127.0.0.1:8080/debug/pprof/heap --colors=mem
# 画出内存分配图
go tool pprof -alloc_space -cum -svg http://127.0.0.1:8080/debug/pprof/heap > heap.svg

查看

使用浏览器查看svg文件,程序运行中,可以登录 http://127.0.0.1:10086/debug/pprof/ 查看程序实时状态 在此基础上,可以通过配置handle来实现自定义的内容查看,可以添加Html格式的输出,优化显示效果

func writeBuf(buffer *bytes.Buffer, format string, a ...interface{}) {
	(*buffer).WriteString(fmt.Sprintf(format, a...))
}
func htmlHandler(w http.ResponseWriter, req *http.Request) {
	io.WriteString(w, statusHtml())
}
// 访问 localhost:8080/program/html 可以看到一个表格,一秒钟刷新一次
func statusHtml() string {
	var buf bytes.Buffer
	buf.WriteString("" +
		"

netflow-decoder status count

" + "
" + "") writeBuf(&buf, "", lastRecord.RecvUDP, currSpeed.RecvUDP) writeBuf(&buf, "
NAMETOTALSPEED
UDP%d%d

Count time: %s

Time now: %s

", countTime.Format("2006-01-02 15:04:05"), time.Now().Format("2006-01-02 15:04:05")) buf.WriteString("") return buf.String() }

到这里,我们也就讲完了《golang开发安装go-torch火焰图操作步骤》的内容了。个人认为,基础知识的学习和巩固,是为了更好的将其运用到项目中,欢迎关注golang学习网公众号,带你了解更多关于golang的知识点!
